Engine type: 4-stroke, single cylinder, air cooled, Horizontal OHV Engine
Displacement: 208cc, 7.5HP
Max HP: 7.5hp/3600rpm
Max torque: 8 lb ft/2800rpm
Bore x stroke: 2.76×2.13 inches
Max speed: 32 mph
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Electric or Pull
Battery: 12V 10Ah
Carburetor brand: JF210N.9.1C
Engine oil: SAE 15W-40
General Information
Clutch: Automatic torque converter CVT with reverse
Driveline: / Driving wheel Chain / Dual wheel drive

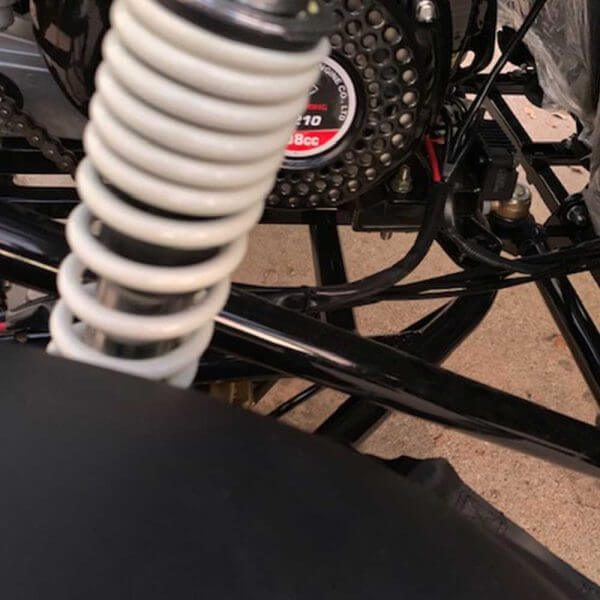

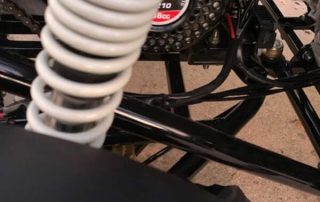

Suspension: F / R Double A-arm / swing-arm
Brake: Rear disc
Tires:, F / R 18X7-8 / 18X7-8
Wheel Steel
Fuel capacity: 1 gal
Weight:, G.W. / N.W. 485 / 400 lbs
Max load: 400 lbs
Dimension Information
Wheelbase: 57 inches
OA L x W x H: 79x51x56.3 inches
Height to seat: 15.7 inches
Min ground clearance: 4 inches
Pedal to seat back distance: 32” to 38””
Notes “EPA certificated”
